مكان المنشأ:
الصين
اسم العلامة التجارية:
HWASHI
إصدار الشهادات:
CE
رقم الموديل:
WL-SF-MF-100K / 120K / 160K
اتصل بنا
فيديو
فيديو
فيديو
فيديو

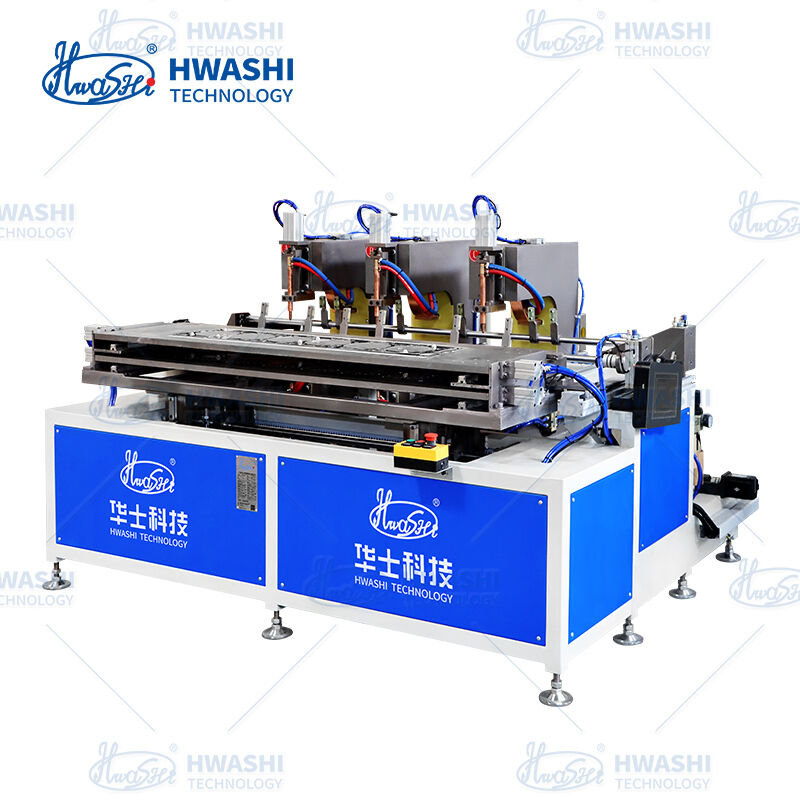

The Automatic Spot Welding Machine for Automotive Engine Gaskets is a precision resistance welding system purpose-built for the automotive gasket manufacturing industry. Designed to weld multi-layer metal gasket assemblies — including cylinder head gaskets, exhaust gaskets, and oil pan gaskets — the machine delivers consistent, high-strength welds that meet the stringent quality standards of modern engine production.

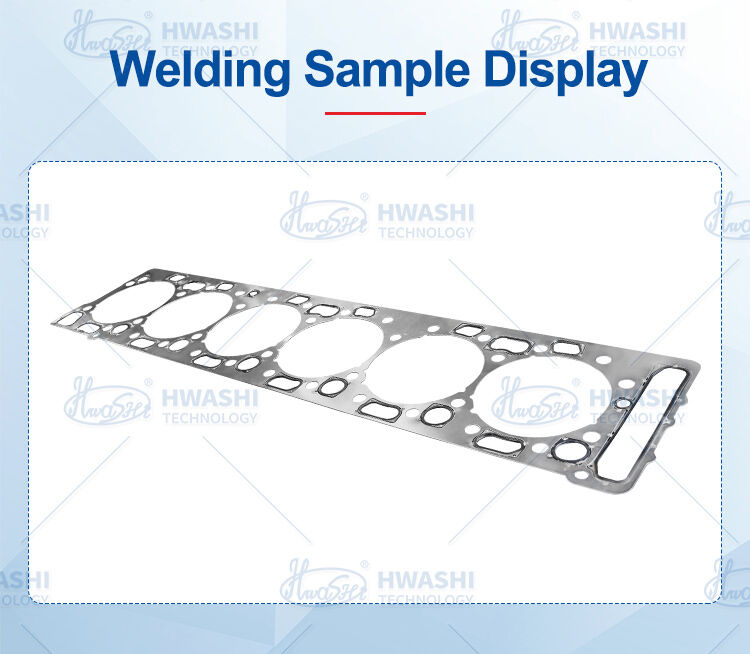

Cylinder head gaskets are among the most critical sealing components in an engine, positioned between the cylinder head and engine block where they must withstand extreme combustion temperatures and pressures while effectively sealing combustion gases, coolant, and engine oil. The quality of spot welds on these gaskets directly affects engine power output, durability, and overall reliability.
| Parameter | Specification |
|---|---|
| Model | Customizable (Contact for model selection) |
| Input Power | Three-phase 380V±10% 50/60Hz |
| Rated Capacity | 25–100 KVA (Customizable per gasket type and material) |
| Rated Duty Cycle | 50% |
| Maximum Secondary Short-circuit Current | Up to 30 KA |
| Transformer Insulation Grade | Grade F |
| Welding Heads | 2–8 heads (Configurable per gasket design) |
| Electrode Stroke | 80 mm (Upper) / 30 mm (Lower adjustable) |
| Welding Stations | 2–4 stations rotary or linear (Configurable) |
| Cycle Time | 8–15 s/pc (Depends on gasket type and weld count) |
| Positioning Accuracy | ±0.05 mm |
| Control Mode | PLC + Touch Screen HMI |
| Cooling System | Water-cooled (transformer, thyristor, electrodes) |
| Pneumatic Pressure | 0.4–0.6 MPa |
| Machine Dimension | Custom per configuration |
| Machine Weight | Custom per configuration |
| Industry | Typical Products |
|---|---|
| Automotive Engine Manufacturing | Cylinder head gaskets, valve cover gaskets, oil pan gaskets |
| Automotive Exhaust Systems | Exhaust manifold gaskets, EGR gaskets |
| Automotive Cooling Systems | Water pump gaskets, thermostat housing gaskets |
| Commercial Vehicle Engines | Heavy-duty diesel engine gaskets |
| Motorcycle & Small Engine | Small displacement engine gaskets |
| Gasket Aftermarket | Replacement gasket manufacturing |
