Hwashi SQ-MF25K Gantry Wire Mesh Welder with Auto Wire Layout

Introducing the Hwashi SQ-MF25K Automatic Wire Mesh Gantry Welder — a revolutionary production system featuring automatic wire layout, multi-point wiring, and fully automated feeding for large-scale mesh fabrication. Engineered for supermarket shopping carts, storage cages, pet crates, warehouse rack shelving, and guardrail mesh panels. This machine transforms manual-intensive mesh production into a streamlined, high-efficiency operation.

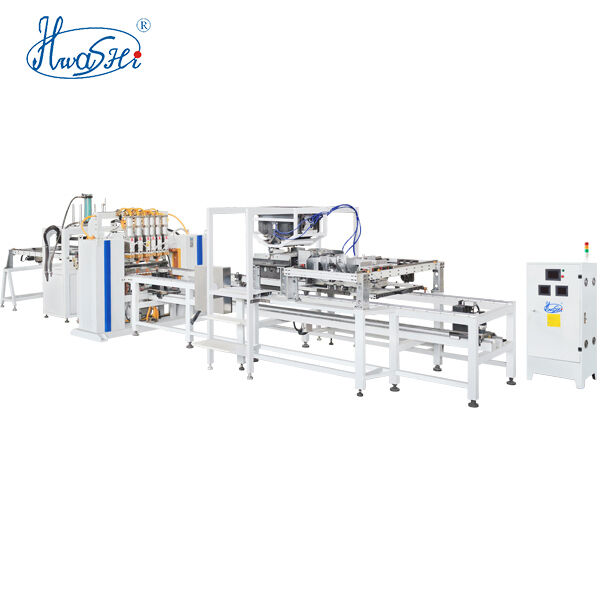

The SQ-MF25K is a fully automated gantry wire mesh welding system designed for high-volume production of standard and custom-shaped large mesh panels. The system combines five independent wire layout mechanisms with six MFDC inverter power supplies to deliver unprecedented welding speed and consistency.

What makes the SQ-MF25K a game-changer is its complete automation workflow — automatic wire arrangement, automatic feeding, automatic welding, and automatic panel discharge. The transformation speaks for itself: before automation, 8 workers in 2 shifts produced 800 pieces/day; after SQ-MF25K installation, just 2 operators oversee 3,200 pieces/day — a 4* efficiency boost with 99.5% pass rate and an 8-month ROI.

This is the ultimate solution for mesh manufacturers seeking to eliminate labor bottlenecks, reduce production costs, and scale output without expanding workforce.

The SQ-MF25K combines four core subsystems working in perfect synchronization:

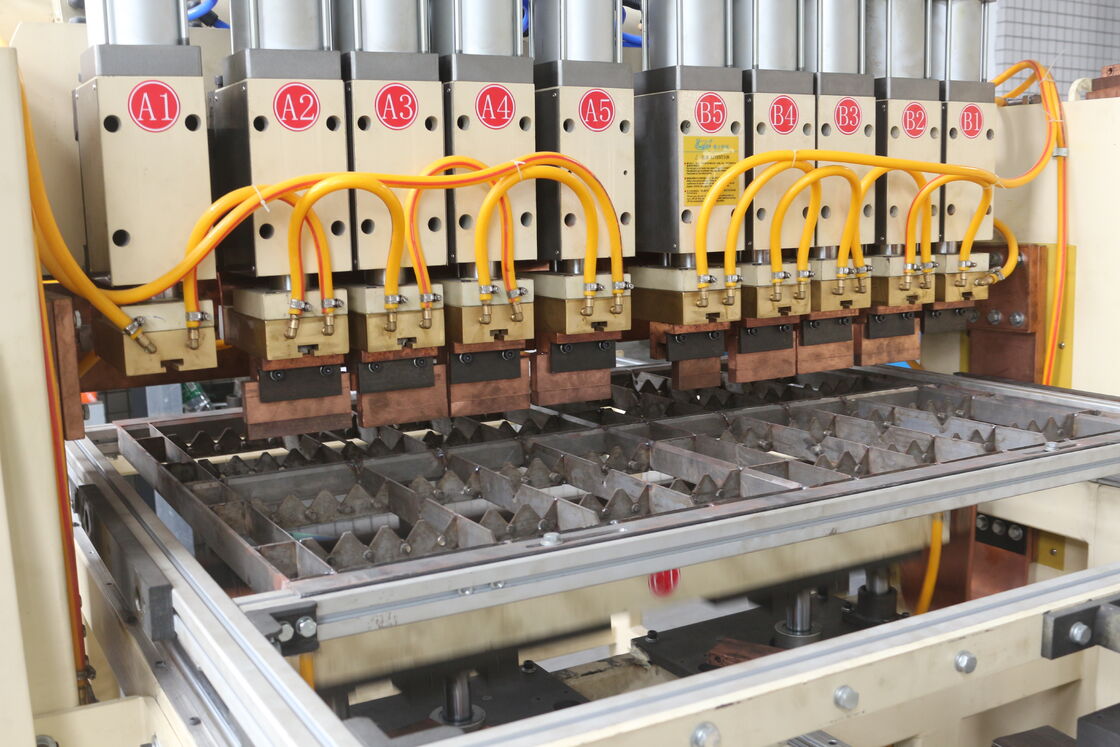

1. Gantry Frame Structure — Provides rigid support for multi-head welding array and wire layout mechanisms
2. 5-Set Automatic Wire Layout System — Precisely positions longitudinal and transverse wires before welding
3. 6-Set MFDC Inverter Power Supplies — Delivers medium-frequency direct current to multiple welding heads simultaneously
4. Automatic Feeding & Discharge System — Moves workpieces through the welding cycle without manual intervention

The HMI control panel allows operators to configure wire spacing, mesh dimensions, and welding patterns for different product specifications.
