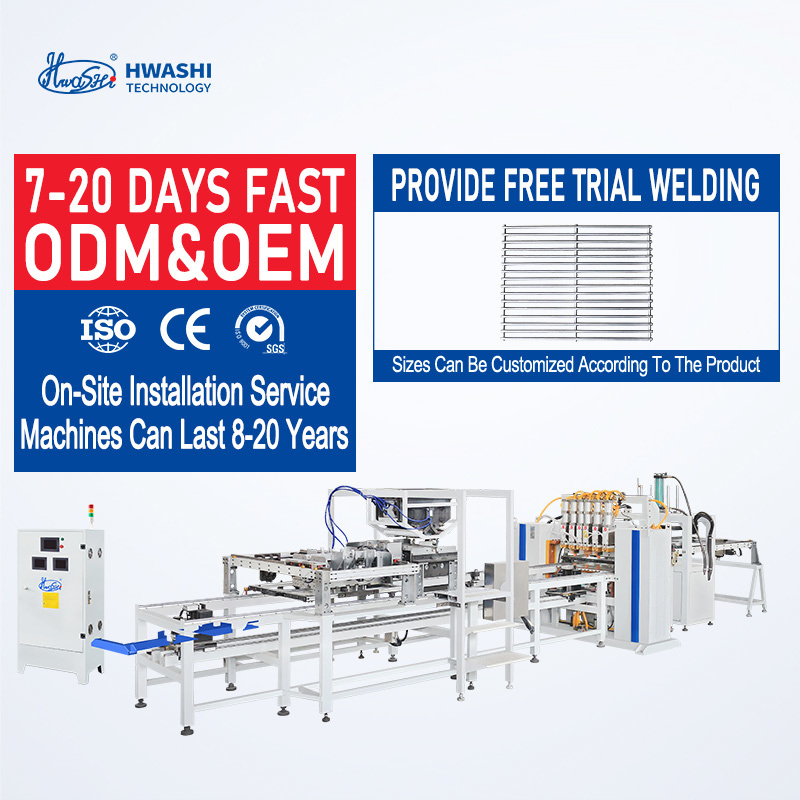

Name: Automatic Wire Mesh Welding Machine with 1 Year Warranty Double-Layer Feeder and Automatic Wire Filling System
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ-MF100K
Price: 30,000.00 USD
Availability: InStock

بيت > منتجات > آلة لحام شبكة الأسلاك >

Automatic Wire Mesh Welding Machine with 1 Year Warranty Double-Layer Feeder and Automatic Wire Filling System

3000mm Effective Welding Length Wire Mesh Welding Machine,1-5mm Welding Thickness Wire Mesh Welder,1000mm x 1000mm Mesh Welding Range Automatic Wire Mesh Welding Machine

1-5mm Welding Thickness Wire Mesh Welder

1000mm x 1000mm Mesh Welding Range Automatic Wire Mesh Welding Machine

مكان المنشأ:

الصين

اسم العلامة التجارية:

HWASHI

إصدار الشهادات:

CE/CCC/ISO

رقم الموديل:

WL-SQ-MF100K

اتصل بنا

اطلب اقتباس

تفاصيل المنتج

جهاز ثني مقبض الأسلاك ثنائي الأبعاد:

Bends Bends Wire Conduct لانحناء الأسلاك 2-6mm

عرض لحام فعال:

1200mm

فئة المنتج:

آلة لحام شبكة السلك

اسم المنتج:

مصدر طاقة اللحام ثلاث مراحل MF DC نظام إمدادات الطاقة لحام شبكة السلك

آلة تشذيب حافة الأسلاك:

يقطع حافة السلك من إطار السلك لجعل السطح نظيفًا وسلسًا

أقصى سرعة الأسلاك:

200mm/s

طول اللحام الفعال:

3000mm

آلة تقويم الأسلاك عالية السرعة:

يجعل إنتاج الدُفعات من 2 مم إلى 4 مم في حوالي 5 أضعاف السرعة العادية

شروط الدفع والشحن

الحد الأدنى لكمية

1 مجموعة

الأسعار

قابل للتفاوض

تفاصيل التغليف

حزمة خشبية تستحق البحر

وقت التسليم

7-30 أيام العمل بعد تلقي دفعتك

شروط الدفع

الاعتماد المستندي، تي/تي

القدرة على العرض

50 مجموعة في الشهر

منتجات ذات صله

فيديو

Automatic Wire Mesh Welding Machine with 1 Year Warranty 200mm/S Maximum Wiring Speed and 2D Wire Handle Bending

احصل على افضل سعر

فيديو

Automatic Wire Mesh Welding Machine with 1 Year Warranty 200mm/S Maximum Wiring Speed and 2D Wire Handle Bending

احصل على افضل سعر

فيديو

Automatic Wire Mesh Welding Machine with 1 Year Warranty 200mm/S Maximum Wiring Speed and 2D Wire Handle Bending

احصل على افضل سعر

فيديو

Automatic Wire Mesh Welding Machine with 1 Year Warranty Double-Layer Feeder and Automatic Wire Filling System

احصل على افضل سعر

اتصل بنا

+86-13380655800

export_trade@hwashi.com

86-752-3528326

اتصل الآن

وصف المنتج

Welding Power Source Three-Phase MF DC Power Supply System for Wire Mesh Welder

This wire welding machine features a single-head long arm welding structure with automatic X and Y axis workpiece mold movement. By inputting coordinate data of welding position and current, it achieves fully automatic welding. Simply load materials manually and remove finished pieces. Ideal for welding mesh within 1000mm × 1000mm range.

Specifications

Model	WL-TSP-100/150K
Input Power (V/φ)	380/3
Rated Power (KVA)	100/150
Applicable Material	Stainless Steel, Carbon steel, Aluminum, Metal
Electrode Force (KG)	250-400
Welding Thickness (MM)	1-5mm
Warranty	1 year
Mesh Welding Range	1000mm × 1000mm

The Three-Phase MF DC Power Supply System delivers precise, stable DC output through three-phase input, optimized for industrial wire mesh production. Operators can prepare materials for next welding while current work continues, reducing labor costs and maximizing efficiency.

Key Features

Intelligent welding control system with automatic coordinate and current input
Core components: PLC, Engine, Motor for reliable operation
Wire frame bending capability for square shape wire frames
Dual power options: Three-phase MF DC or two-phase AC supply
Automatic wire filling system for continuous operation
Customizable dimensions to match specific product requirements
1200mm effective welding width for large mesh products
Automatic double-layer feeder for improved productivity

Technical Parameters

Product Name	Wire Mesh Welding Machine
Welding Power Source	Three-phase MF DC or two-phase AC power supply
High Speed Wire Processing	5× normal speed for 2mm to 4mm wires
2D Wire Handle Bending	2-6mm wire bending capability
Welding Heads and Fixtures	Custom designed per product drawings
Wire Frame Double T-Butt Machine	Dual-head cross bar welding design

Applications

Ideal for manufacturing wire mesh fences, cages, grids, and shelves. Capable of welding various wire diameters and mesh sizes with 3000mm effective length and 1200mm width. Features full-automatic stainless steel mesh welding with multiple simultaneous welding heads for high-volume production.

Delivery: 7-30 working days after payment
Packaging: Sea-worthy wooden case
Capacity: 50 sets/month
Payment: L/C or T/T negotiable
